Model
|

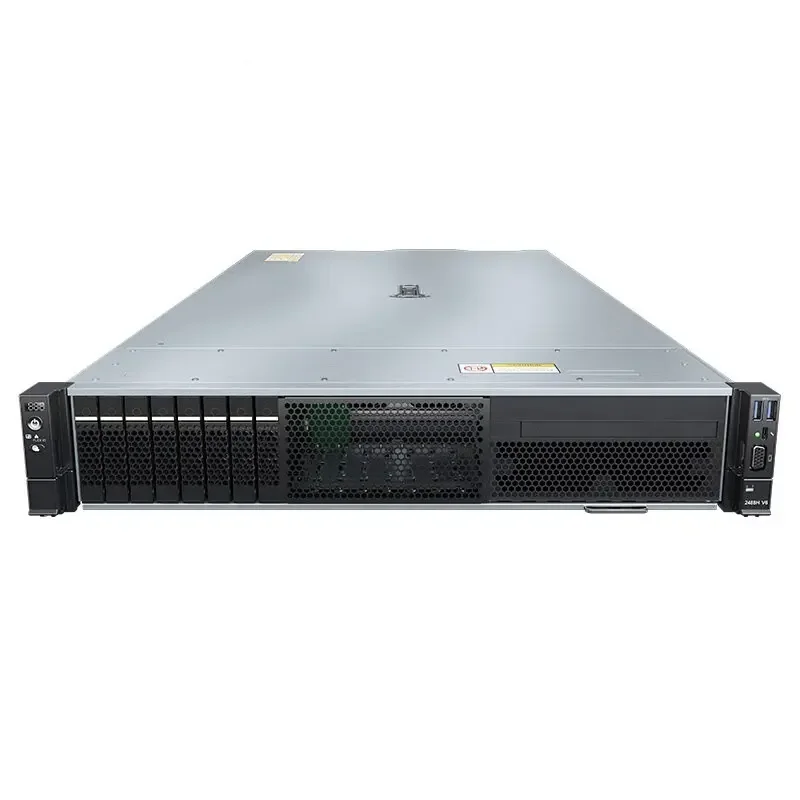

2488H V6
|
|||
|
Processor
|
2 or 4 x 3rd Gen Xeon Scalable processors (5300/6300/8300 series), TDP up to 250 W
|
|||
|
ذاكرة
|
48 DDR4 DIMM slots, up to 3200 MT/s; up to 24 Optane PMem modules (200 series), 2666 MT/s
|
|||
|
Local Storage
|
Supports hot-pluggable drives with the following configuration options:
• 8 x 2.5” front SAS/SATA/NVME drives • 24 x 2.5” front SAS/SATA drives • 25 x 2.5” front SAS/SATA drives • 4 x 2.5” front SAS/SATA drives and 8 x 2.5” NVMe SSDs • 4 x 2.5” front SAS/SATA drives and 16 x 2.5” NVMe SSDs Flash storage: • 2 x M.2 SSDs |
|||
|
دعم RAID
|
RAID 0, 1, 5, 50, 6, or 60; optional supercapacitor for cache power-off protection; RAID-level migration, drive roaming,
self-diagnosis, and web-based remote configuration |
|||
|
توسيع PCIe
|
Up to 11 PCIe 3.0 slots, including one dedicated PCIe slot for the OCP 3.0 NIC
|
|||
|
Heterogeneous Accelerator Cards
|
2 dual-slot FHFL or 4 single-slot HHHL GPU heterogeneous accelerator cards
|
|||
|
وحدات المروحة
|
6 hot-swappable fan modules in N+1 redundancy mode
|
|||
|
مزود الطاقة
|
2 hot-swappable PSUs with support for 1+1 redundancy and the following configuration options:
• 3000 W AC Titanium PSUs 2500 W (input: 200 V to 220 V AC) 2900 W (input: 220 V to 230 V AC) 3000 W (input: 230 V to 240 V AC) • 2000 W AC Platinum PSUs 1800 W (input: 200 V to 220 V AC, or 192 V to 200 V DC) 2000 W (input: 220 V to 240 V AC, or 200 V to 288 V DC) • 900 W AC Platinum/Titanium PSUs (input: 100 V to 240 V AC, or 192 V to 288 V DC) • 1500 W HVDC PSUs (input: 260 V to 400 V AC) • 1500 W 380V HVDC PSUs (input: 260 V to 400 V DC) |
|||
|
إدارة
|
• BMC integrates one dedicated management GE network port to provide comprehensive management features such as fault diagnosis,
automated O&M, وتقوية أمن الأجهزة. • BMC supports standard interfaces such as Redfish, SNMP, and IPMI 2.0; provides a remote management interface based on HTML5/VNC KVM; supports CD-free deployment and the Agentless feature for smart and simplified management. • (Optional) Configured with the FusionDirector management software to provide advanced management features such as stateless computing, batch OS deployment, and automated firmware upgrade, enabling automatic entire-lifecycle management |
|||
|
Certifications
|
CE, UL, FCC, CCC, and RoHS, الخ
|
|||
|
ابعاد (H x W x D)
|
Chassis: 86.1 mm x 447 mm x 790 mm (3.39 in. x 17.60 in. x 31.10 in.)
|
|||
