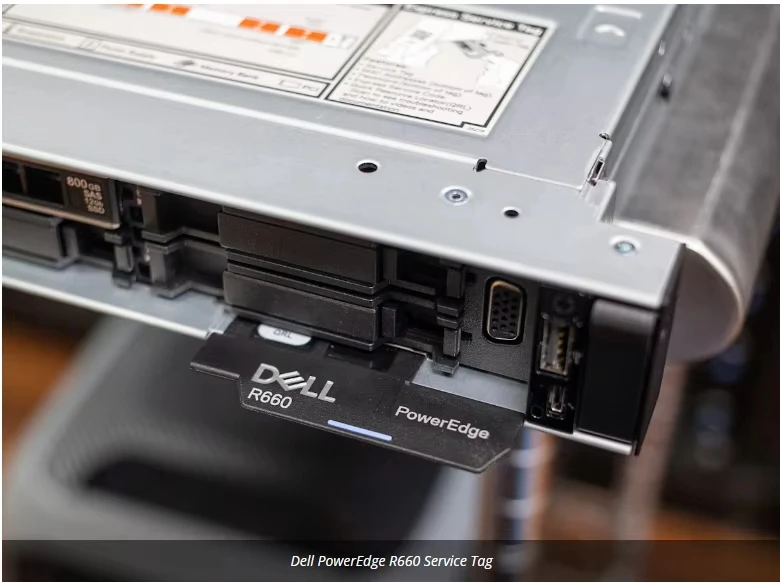

Brand New R660 Server Xeon Scalable processors 1u 2-socket Rack Server poweredge R660
Poweredge R660 is an evolution of Dell’s previous generation PowerEdge R650. This 1U rackmount server is aimed at everything from general-purpose usage to HCI/HPC.
Key features include support for two processors (dual sockets), 32 RDIMMs, and three graphics cards.
· Original Dell PowerEdge R660 Rack Server: This server is an original, Nouveau, et 100% authentic Dell PowerEdge R660 rack server, ensuring the highest quality and reliability for your business operations. · 1U Size and 2TB Hard Drive: The compact and lightweight 1U rack server design allows for easy installation and efficient use of space in your data center, equipped with a 2TB hard drive for ample storage capacity to handle your business needs. · DDR4 32GB/64GB Memory: The server is equipped with DDR4 32GB or 64GB memory, providing fast and efficient data processing and ensuring smooth operation of your applications and systems. · Dell, PowerEdge, and Original Brand: Built on the strong foundation of the Dell, PowerEdge, and original brand, this server offers unparalleled quality, performance, and support, ensuring peace of mind and long-term success for your business.
R660 VS R650
The R660’s biggest advancement over the R650 is that it’s based on Intel “Sapphire Rapids” fourth-generation Xeon Scalable processors.
These new chips scale to 56 scores, use DDR5 memory and support Gen5 storage.
Storage configurations are also one of this server’s strengths.
Storage configurations are also one of this server’s strengths.
Conventional storage scales up to ten 2.5-inch SAS/SATA drives, but it can also use Gen5 NVMe SSDs. Additionally, a new backplane option includes support for up to 16x E3.S (7mm) drives. There are also rear-drive options for boot which includes the new NVMe BOSS drive.
Product Parameters
|
Could you please tell me your specific configuration ?
|
Such as:cpu,ram and hard disk drive…Click here to have a detailed one-on-one chat with the engineer.
|
|
CPU
|
Sapphire Rapid (Bronze, Silver, Gold5, Gold6, Platinum) with up to 56 Noyaux
per processor Support for up to 2x 350W processors Direct Liquid Cooling support |
|
Mémoire
|
Jusqu’à 32 x DDR5 RDIMMs
DIMM Speed: Jusqu’à 4800 MT/s |
|
Stockage
|
Jusqu’à 10 x 2.5” SAS/SATA HDD/SSD; or NVMe SSD
Jusqu’à 16 x E3.S NVMe Gen5 DUAL PERC* Jusqu’à 14 x E3.S NVMe Gen5 direct attach* Jusqu’à 2 x 2.5” (rear) SAS/SATA HDD/SSD; or NVMe SSD Jusqu’à 2 x E3.S(rear) NVMe Gen5* Rear BOSS-N1 (2xM.2 NVMe) for boot Internal: USB Bandwidth: SAS4-24Gb, SAS3-12Gb, SATA-6Gb |
|
Storage Controller
|
HW RAID: PERC 11 & 12 (dual PERC option)
HW SAS4/SATA/NVMe RAID (PERC12) SW RAID: Yes |
|
Réseau
|
Optional 2 x 1GbE LOM and/or 1 x OCP 3.0
|
|
PCIe Slots
|
Jusqu’à 3 x PCIe Slots (with up to 2 PCIe Gen5), SNAP I/O option
|
|
GPU
|
3x SW GPUs*
|
|
Integrated Ports
|
Front: 1 x USB 2.0, 1 x iDRAC Direct (Micro-AB USB) port, 1 x VGA
Rear: 1 x Dedicated iDRAC Ethernet port, 1 x Serial (optional), 1x USB 2.0, 1 x USB 3.0, 1 x VGA (optional for Liquid Cooling configurations) Internal: 1x USB 3.0 (optional) |
|
Gestion du système
|
iDRAC9, iDRAC Direct, iDRAC RESTful API with Redfish, iDRAC Service
Module, Quick Sync 2 wireless module, OpenManage Enterprise and Plugins (Power Manager, SupportAssist, Update Manager), OpenManage Mobile |
|
High Availability
|
Hot-plug redundant hard drives, PSU.
Hot-plug fans. Hot-plug BOSS |
|
Power Supplies
|
AC (Platinum): 800W, 1400W
AC (Titanium): 700W, 1100W, 1800W LVDC @-48VDC Input: 1100W |
|
Taille
|
H x L x P: 42.8mm x 482mm x 809mm (without bezel)
|
|
Facteur de forme
|
1U Rack Server
|
