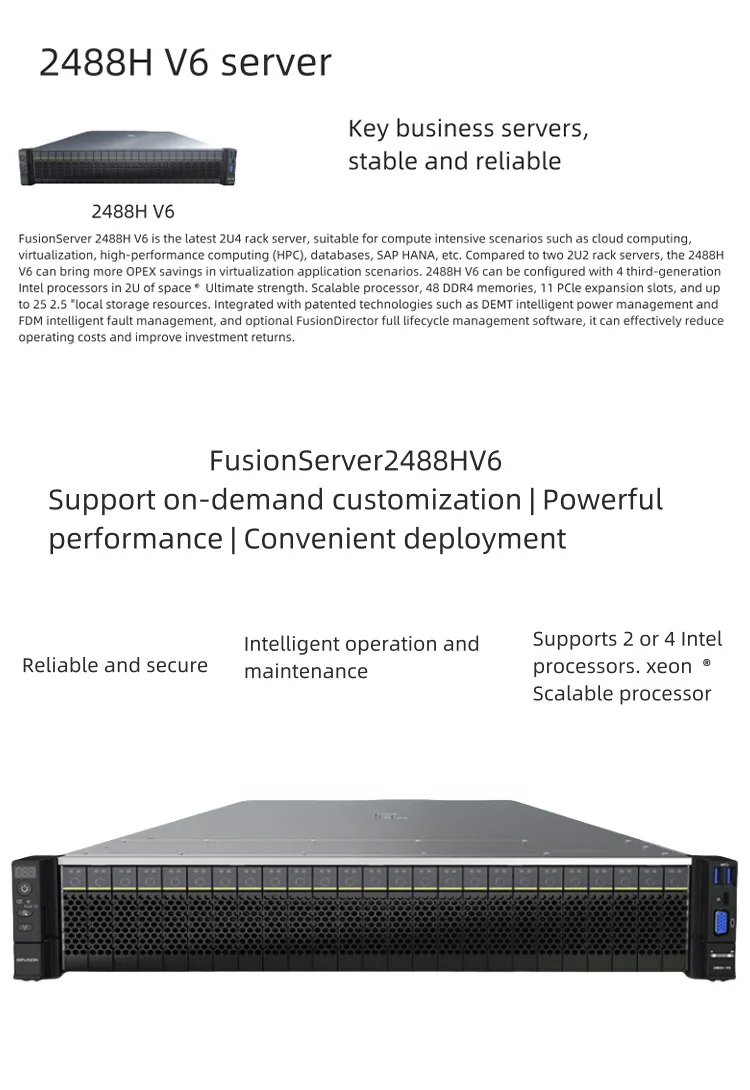

FusionServer 2488H V6 Server
|
|
modèle
|
FusionServer 2488H V6
|
Facteur de forme
|
2Serveur rack U
|
Chipset
|
Intel C621A
|
Processeurs
|
2/4 3rd generation Intel ® Xeon ® scalable processors 5300/6300/8300 series up to 250W
|
Mémoire
|
48 DDR4 memory slots up to 3200MT/s
|
Internal Storage
|
Supports a variety of hard disk configurations, hard disk support hot swap:
• Eight front-facing 2.5-inch SAS/SATA/NVME hard disks can be configured • 24 front-facing 2.5-inch SAS/SATA hard disks can be configured • 25 front-facing 2.5-inch SAS/SATA hard disks can be configured • Four front-facing 2.5-inch SAS/SATA hard disks and eight NVMe SSDS can be configured • Four front-facing 2.5-inch SAS/SATA hard disks and 16 NVMe SSDS can be configured Support Flash storage: • Dual M.2 SSD |
Prise en charge RAID
|
Optional configuration supports RAID0, 1, 10, 1E, 5, 50, 6, 60, etc., supports Cache supercapacitor protection, provides RAID
level migration, disk roaming, self diagnosis, web, remote settings and other functions |
network
|
One optional OCP3.0 NIC: Provides two GE, two 10GE, two 25GE, or two 100GE ports and supports the hot-swappable, NC-SI, WOL, et
PXE features |
Extension PCIe
|
Supports a maximum of 11 PCIe3.0 expansion slots, including 9 rear I/O PCIe expansion slots, 1 internal PCIe expansion slot, et
1 OCP3.0 dedicated FLEX I/O expansion slot |
GPU
|
Supports a maximum of 11 PCIe3.0 expansion slots, including 9 rear I/O PCIe expansion slots, 1 internal PCIe expansion slot, et
1 OCP3.0 dedicated FLEX I/O expansion slot |
Modules de ventilation
|
Six hot-swappable fans in N+1 redundancy
|
Alimentation
|
Optional 900W/1200W/1500W/2000W/3000W platinum/titanium hot swappable power supply, supporting 1+1 redundancy
|
Gestion
|
The iBMC chip integrates one dedicated GE management network port and provides comprehensive management features, such as fault
Diagnostic, automatic operation and maintenance, et le renforcement de la sécurité matérielle. • iBMC supports standard interfaces, such as Redfish, SNMP, and IPMI2.0. Provides a remote management interface based on HTML5/VNC KVM. Support monitoring, Diagnostic, configuration, Out-of-band management features such as Agentless and remote control simplify management complexity • The FusionDirector management software is optional and provides advanced management features, such as five intelligent functions, to achieve intelligent, automatic, visual, et une gestion affinée tout au long du cycle de vie |
operating system
|
Microsoft Windows Server、SUSE Linux Enterprise Server、VMware ESXi、Red Hat Enterprise Linux、Centos、Oracle、 Ubuntu、Debian、openEuler,
etc |
temperature
|
5 º C-45 º C (41 º F-113 º F) (compliant with ASHRAE A3 and A4 standards)
|
Installation Suite
|
Rails de guidage en forme de L, Rails de guidage réglables, et rails de maintien
|

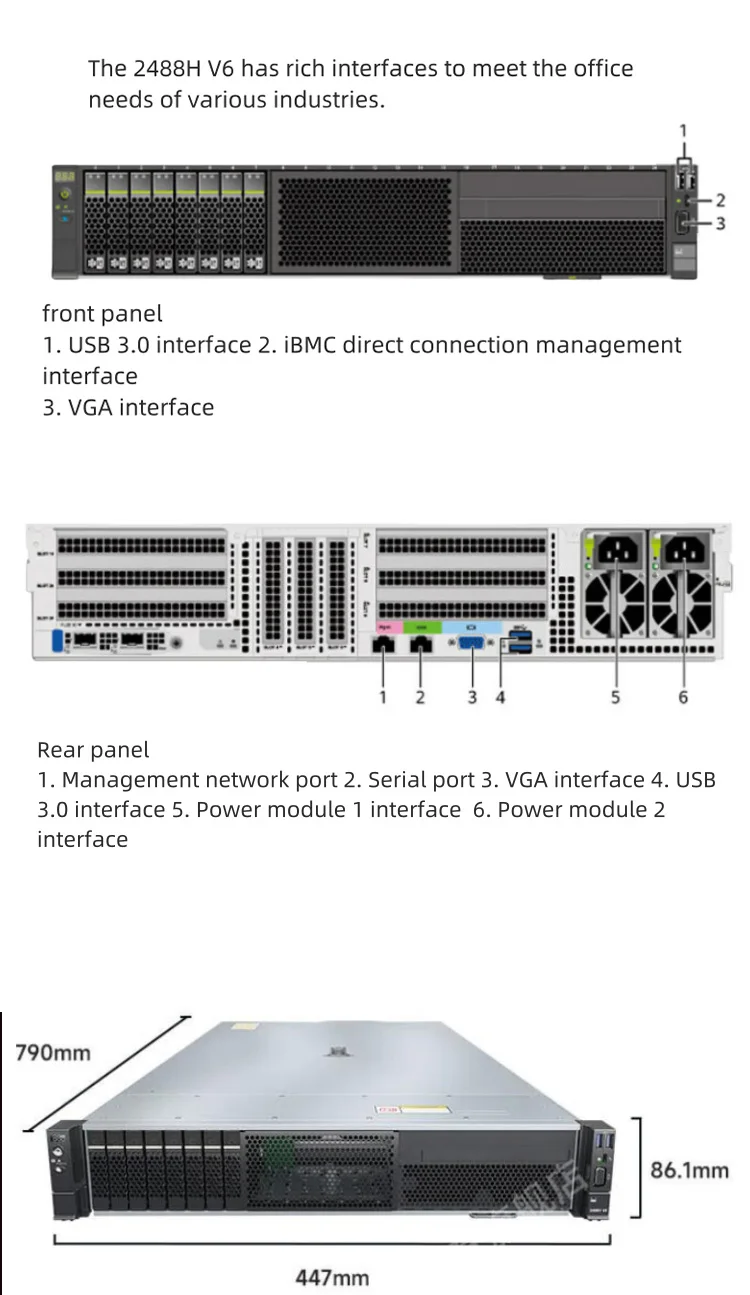

Taille
|
Chassis size: :86.1mm×447mm×790mm
|
