Revendeurs de serveurs
|
Chassis
|
R770 server
|
|
CPU
|
Two Intel Xeon 6 Processor with up to 144 cores per processor
|
|
Mémoire
|
32 DDR5 DIMM slots, supports RDIMM 2 TB max
|
|
Storage controllers
|
• Internal Boot: Boot Optimized Storage Subsystem (BOSS-N1 DC-MHS): HWRAID 1, 2 x M.2 NVMe SSDs or M.2 Interposer board (DCMHS): 2 x M.2 NVMe SSDs or USB
• Internal controllers: Front PERC H965i
|
|
Front Bays
|
•Jusqu’à 8 x EDSFF E3.S Gen5 NVMe (SSD) max 122.4 TB
•Jusqu’à 16 x EDSFF E3.S Gen5 NVMe (SSD) max 244.8 TB
•Jusqu’à 8 x 2.5 inch NVMe (SSD) max 245.6 TB
•Jusqu’à 16 x 2.5 inch SAS/SATA (SSD) max 61.44 TB
|
|
Power Supplies
|
• 1500 W Titanium 100—240 VAC or 240 VDC
• 1100 W Platinum 100—240 VAC or 240 VDC
• 800 W Platinum 100—240 VAC or 240 VDC
|
|
Fans
|
• High performance Silver (HPR SLVR) fans/High performance Gold (HPR GOLD) fans • Up to 6 hot swappable fans
|
|
Taille
|
• Height – 86.8 mm (3.42 inches)
• Width – 482 mm (18.97 inches)
• Weight – 28.53 Kg (62.89 pound)
|
|
GPU Options
|
Jusqu’à 4 x 75 W SW
|
|
Garantie
|
3 Years
|
Product Description
Tailored to fit complex data centers

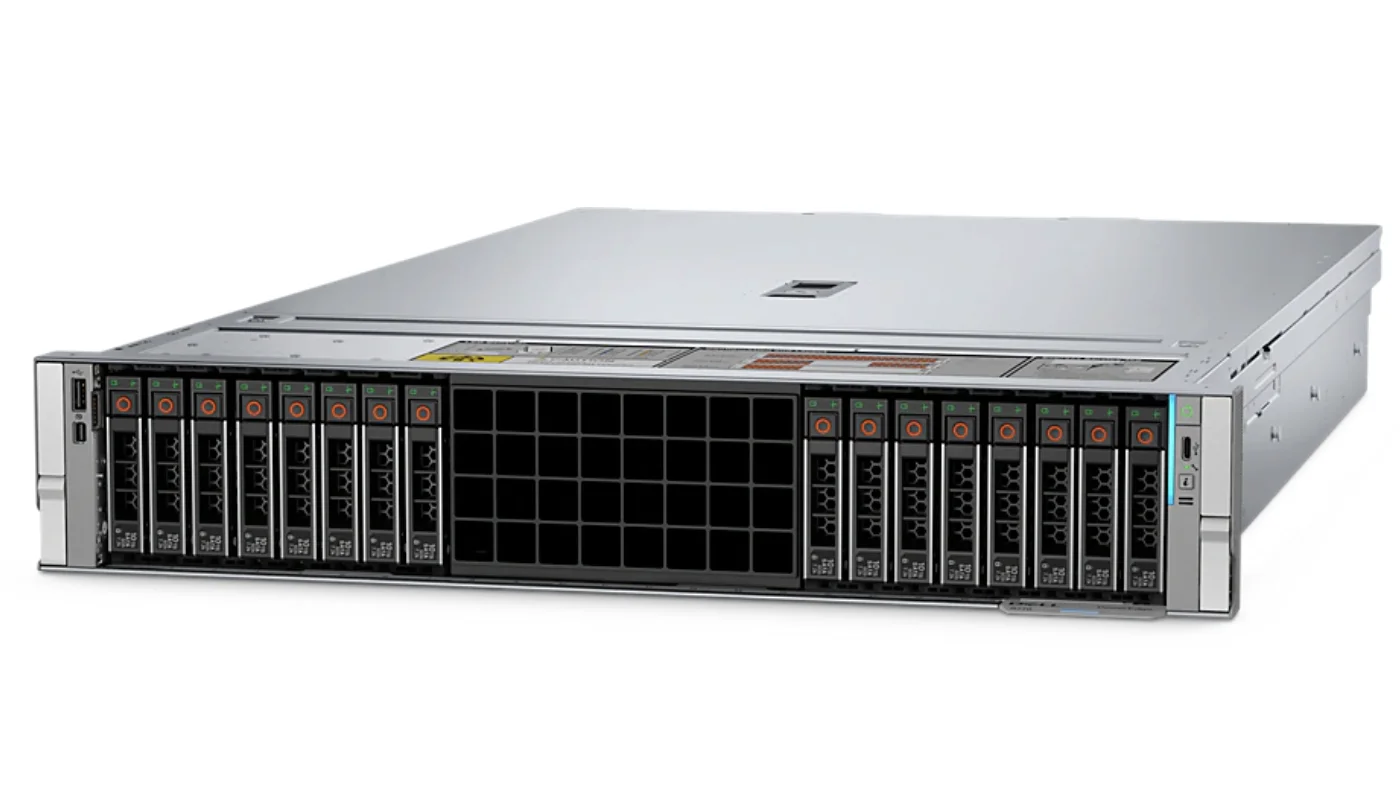

The Dell PowerEdge R770 rack server redefines the intricate needs of modern data centers by providing advanced computing power, engineered for virtualization and microservices, cloud-native applications, large-scale analytics, and distributed inferencing support.
– Purpose-built for enterprise and scale infrastructures to fit seamlessly into your existing infrastructure.
– Equipped with two Intel® Xeon® 6 processors for swift and precise processing, complimented by GPU support for enhanced computational power.
– Enhanced I/O flexibility with an optional front I/O configuration, providing seamless serviceability in cold aisle environments.
– Dell Smart Cooling technology and front I/O configurations are optimized for air-cooled environments, delivering better utilization per rack and a smaller footprint for sustainability.
– Configurable to suit diverse needs, these servers are industry standards open designs (DC-MHS) compliant.

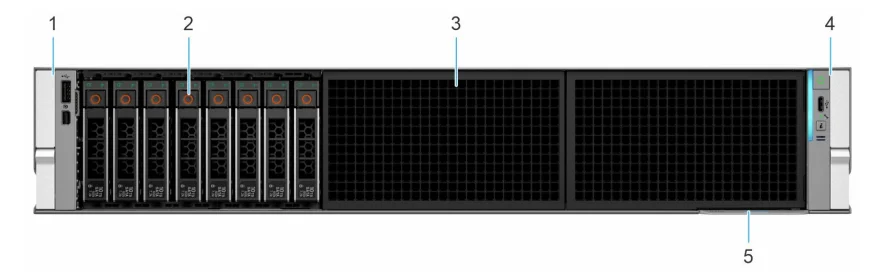

Front view of 8 x 2.5-inch drive system
1 Left control panel 2 Conduire 3 Drive blank

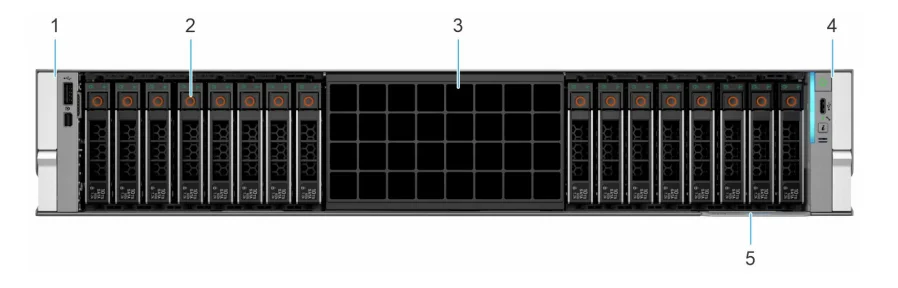

Front view of 16 x 2.5-inch drive system
4 Right control panel
5 Express Service Tag
