Processor
|
|
|
Memory
|
• 24 DDR5 DIMM slots, supports RDIMM 6 TB max, speeds up to 4800 MT/s • Supports registered ECC DDR5 DIMMs only
|
|
Drive Bays
|
Front bays: • Up to 8 x 3.5-inch SAS/SATA (HDD/SSD) max 160 TB
• Up to 12 x 3.5-inch SAS/SATA (HDD/SSD) max 240 TB• Up to 8 x
2.5-inch SAS/SATA/NVMe (HDD/SSD) max 122.88 TB
• Up to 16 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 245.76 TB• Up to 24 x 2.5-inch
SAS/SATA/NVMe (HDD/SSD) max 368.64 TB Rear bays:
• Up to 2 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 30.72 TB • Up to 4 x 2.5-inch
SAS/SATA/NVMe (HDD/SSD) max 61.44 TB
|
|
Power Supplies
|
• 2800 W Titanium 200—240 VAC or 240 HVDC, hot swap redundant • 2400 W Platinum 100—240 VAC or 240 HVDC, hot swap redundant • 1800
W Titanium 200—240 VAC or 240 HVDC, hot swap redundant • 1400 W Platinum 100—240 VAC or 240 HVDC, hot swap redundant • 1100 W Titanium 100—240 VAC or 240 HVDC, hot swap redundant • 1100 W LVDC -48 — -60 VDC, hot swap redundant • 800 W Platinum 100—240 VAC or 240 HVDC, hot swap redundant |
|
Cooling Options
|
• Air cooling • Optional Direct Liquid Cooling (DLC) Note: DLC is a rack solution and requires rack manifolds and a cooling
distribution unit (CDU) to operate. |
|
Fans
|
High performance Silver (HPR) fans/ High performance Gold (VHP) fans • Up to 6 hot plug fans
|
|
Dimensions
|
• Height – 86.8 mm (3.41 inches) • Width – 482 mm (18.97 inches) • Depth – 772.13 mm (30.39 inches) with bezel 758.29 mm (29.85
inches) without bezel |
|
Form Factor
|
2U rack server
|
|
Embedded Management
|
• iDRAC9 • iDRAC Direct • iDRAC RESTful API with Redfish • iDRAC Service Module • Quick Sync 2 wireless module
|
|
Bezel
|
Optional LCD bezel or security bezel
|
|
OpenManage Software
|
CloudIQ for PowerEdge plug in • OpenManage Enterprise • OpenManage Enterprise Integration for VMware vCenter • OpenManage
Integration for Microsoft System Center • OpenManage Integration with Windows Admin Center • OpenManage Power Manager plugin • OpenManage SupportAssist plugin • OpenManage Update Manager plugin |
|
Mobility
|
• BMC Truesight • Microsoft System Center • OpenManage Integration with ServiceNow • Red Hat Ansible Modules • Terraform Providers
• VMware vCenter and vRealize Operations Manager |
|
OpenManage Integrations
|
• BMC Truesight • Microsoft System Center • OpenManage Integration with ServiceNow • Red Hat Ansible Modules • Terraform Providers
• VMware vCenter and vRealize Operations Manager
|
|
Security
|
AMD Secure Memory Encryption (SME) • AMD Secure Encrypted Virtualization (SEV) • Cryptographically signed firmware • Data at Rest
Encryption (SEDs with local or external key mgmt) • Secure Boot • Secured Component Verification (Hardware integrity check) • Secure Erase • Silicon Root of Trust • System Lockdown (requires iDRAC9 Enterprise or Datacenter) • TPM 2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ |
|
Embedded NIC
|
2 x 1GbE LOM card (optional)
|
|
Network Options
|
1 x OCP card 3.0 (optional) Note: The system allows either LOM card or an OCP card or both to be installed in the system.
|
|
GPU Options
|
Up to 2 x 300 W DW or 6 x 75 W SW
|

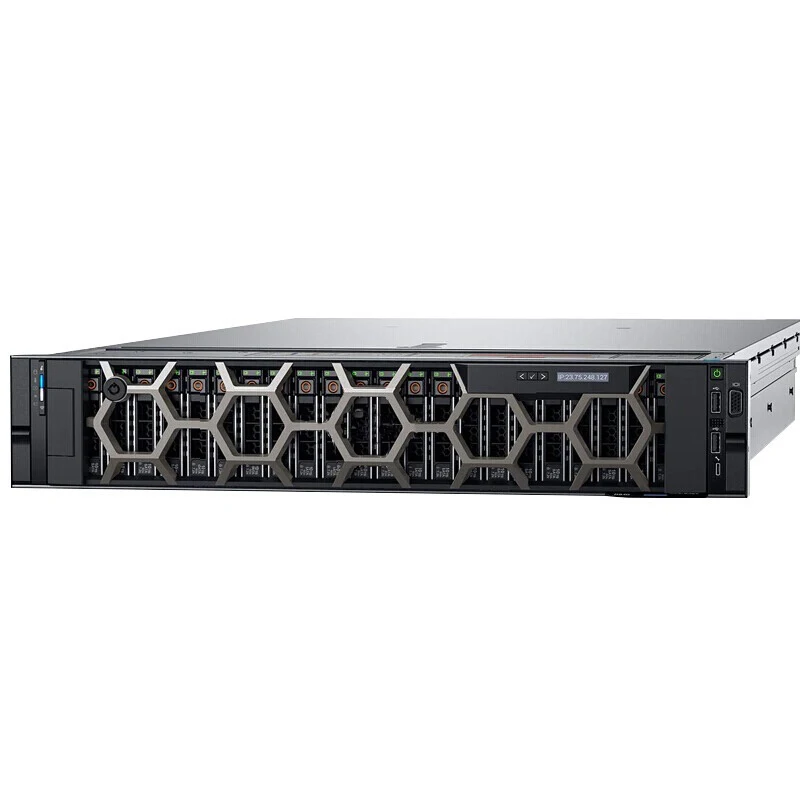

Dell PowerEdge R7625 16 Bay SFF CTO Server – 2X Heatsinks – DDR5 – H755 fPerc Raid – 2X 1800W
