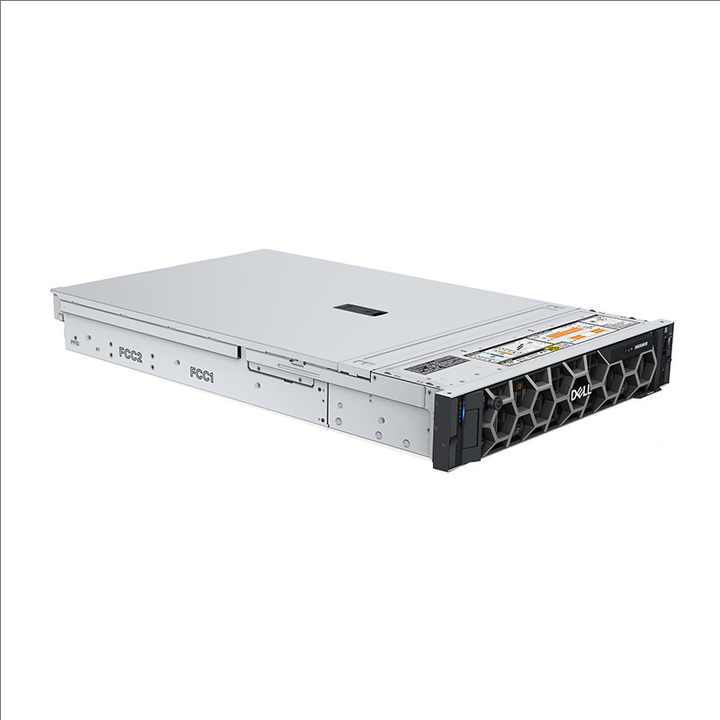

PowerEdge R760 Rack Server
Ultimate performance and versatility
The 2U, 2 socket Dell PowerEdge R760 enables faster time to value with peak compute performance, through optimum configurations.
| Features | PowerEdge R760 |
| Processors | 2 x 4th Gen Intel® Xeon® Scalable or Intel® Xeon® Max Processors
2 x 5th Gen Intel® Xeon® Scalable Processors |
| Memory | 32 x DDR5 RDIMM
Up to 4800 MT/s (1 DPC) / 4400 MT/s (2 DPC) Up to 5600 MT/s (1DPC) / 4400 MT/s (2 DPC) * |
| Storage Controllers | PERC 11G: H755, H755N, H355
PERC 12G: H965i, H965e HBA 11: HBA355i, HBA355e BOSS-N1 Software RAID: S160 |
| Drive Bays | Front bays:
3.5 inches, 2.5 inches – 24 Gb SAS, 6 Gb SATA 2.5 inches – Gen3/4 NVMe EDSFF E3.S – Gen5 NVMe Rear bay: 2.5 inches – 24 Gb SAS, 6 Gb SATA, Gen3/4 NVMe EDSFF E3.S – Gen5 NVMe |
| Power Supplies | AC (Platinum): 800 W, 1400 W, 2400 W
AC (Titanium): 700 W, 1100 W, 1400 W, 1800 W, 2800 W, 3200 W LVDC @-48 VDC Input: 1100 W |
| Cooling Options | Air Cooling
Optional Direct Liquid Cooling (DLC |
| Fans | Standard (STD) fans /High performance Silver (HPR Silver) fans/ High performance Gold (HPR Gold) fans
Up to six hot swap fans |
| Dimension | Height: 86.8 mm (3.41 inches)
Width: 482 mm (18.97 inches) Depth: 772.13 mm (30.39 inches) with bezel 758.29 mm (29.85 inches) without bezel |
| Form Factor | 2U rack server |
| Embedded Management | iDRAC9
iDRAC Direct iDRAC RESTful with Redfish iDRAC Service Manual Quick Sync 2 wireless module |
| Bezel | Optional LCD bezel or security bezel |
| OpenManage Software | CloudIQ for PowerEdge plug in
OpenManage Enterprise OpenManage Enterprise Integration for VMware vCenter OpenManage Integration for Microsoft System Center OpenManage Integration with Windows Admin Center OpenManage Power Manager plugin OpenManage Service plugin OpenManage Update Manager plugin |
| Mobility | OpenManage Mobile |
| Integrations and Connections | OpenManage Integrations
BMC TrueSight Microsoft System Center OpenManage Integration with ServiceNow Red Hat Ansible Modules Terraform Providers VMware vCenter and vRealize Operations Manager |
| Security | Cryptographically signed firmware
Secure Boot Secure Erase Silicon Root of Trust System Lockdown (requires iDRAC9 Enterprise or Datacenter) TPM 2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ Secured Component Verification (Hardware integrity check) Data at Rest Encryption (SEDs with local or external key mgmt) |
| Embedded NIC | 2 x 1 GbE LOM (optional) |
| Networking Options | OCP x16 (optional) Mezz 3.0 |
| GPU Options | Up to two double wide 350 W, or six single wide 75 W accelerators |
| Ports | Front Ports
1 x USB 2.0 1 x VGA 1 x iDRAC Direct (Micro-AB USB) port Rear Ports 1 x USB 2.0 1 x Dedicated iDRAC Ethernet port 1 x USB 3.0 1 x Serial port (optional) 1 x VGA (optional for Direct Liquid Cooling configuration) Internal Port: 1 x USB 3.0 (optional) |
| PCIe | Up to 8 x PCIe Gen4 or up to 4 x PCIe Gen5 slots |
| Operating System and Hypervisors | Canonical Ubuntu Server LTS
Microsoft Windows Server with Hyper-V Red Hat Enterprise Linux SUSE Linux Enterprise Server VMware ESXi |
