| Parameter | Description |

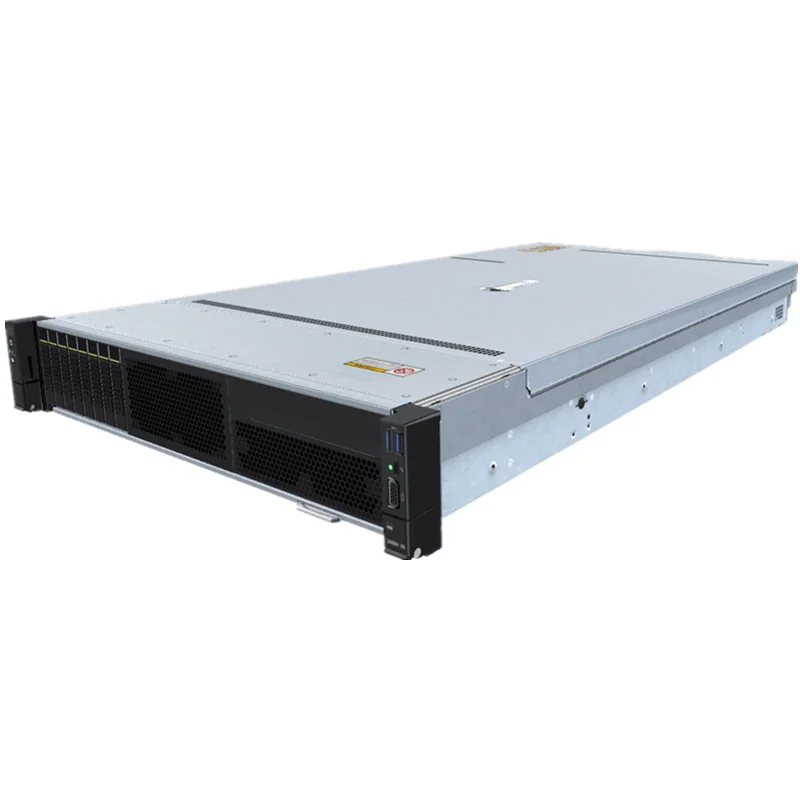

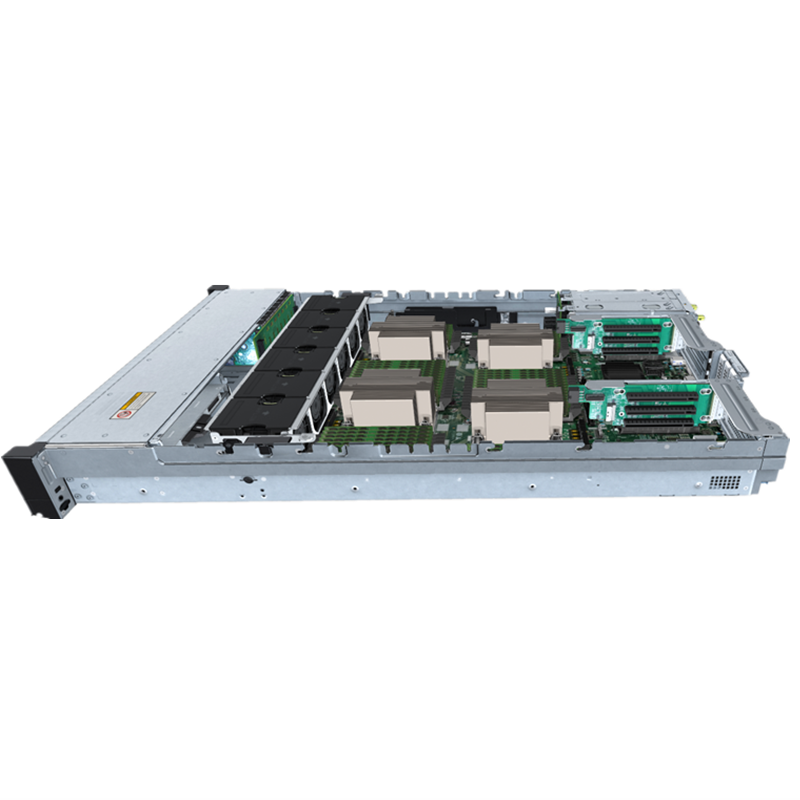

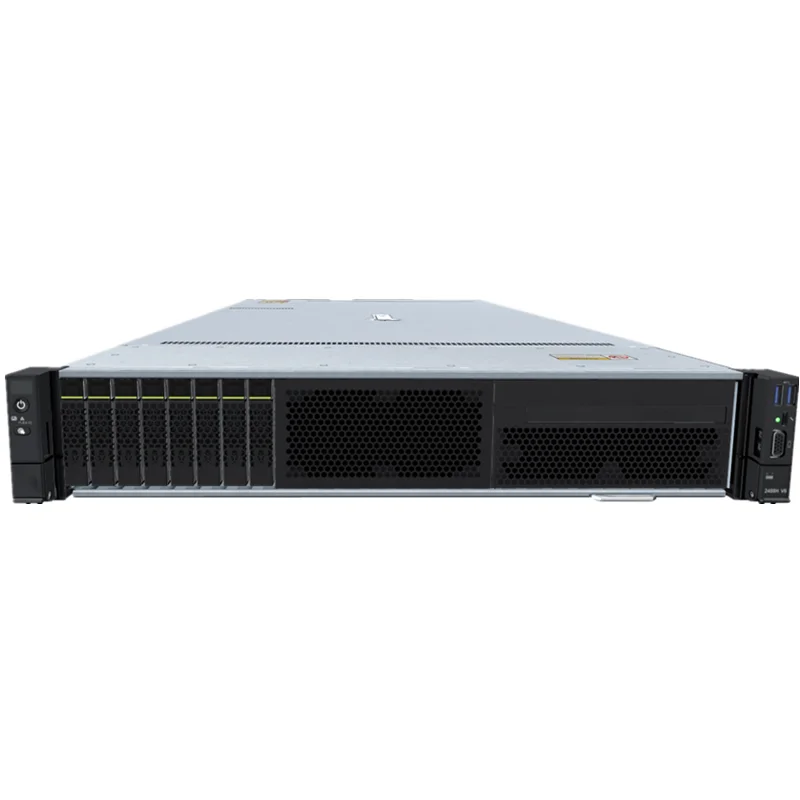

| Model | FusionServer 2488H V6 |
| ฟอร์มแฟคเตอร์ | 2U Rack Server |
| Processors | 2 หรือ 4 x 3rd Gen Intel® Xeon® Scalable processors (5300/6300/8300 series), TDP up to 250 W |
| ความจำ | 48 สล็อต DDR4 DIMM, สูงสุด 3200 MT/s; สูงสุด 24 Intel® Optane™ PMem modules (200 series), 2666 MT/s |
| Local Storage | Supports hot-pluggable drives with the following configuration options:
• 8 x 2.5” front SAS/SATA drives • 24 x 2.5” front SAS/SATA drives • 25 x 2.5” front SAS/SATA drives • 4 x 2.5” front SAS/SATA drives and 8 x 2.5” NVMe SSDs • 4 x 2.5” front SAS/SATA drives and 16 x 2.5” NVMe SSDs Flash storage: • 2 x M.2 SSDs |
| RAID Support | RAID 0, 1, 5, 50, 6, หรือ 60; optional supercapacitor for cache power-off protection; RAID-level migration, drive roaming, self-diagnosis, and web-based remote configuration |
| PCIe Expansion | สูงสุด 11 ซีอีซี 3.0 slots, including one dedicated PCIe slot for the OCP 3.0 NIC |
| Heterogeneous Accelerator Cards | 2 dual-slot FHFL or 4 single-slot HHHL GPU heterogeneous accelerator cards |
| Fan Modules | 6 hot-swappable fan modules in N+1 redundancy mode |
| Power Supply | 2 hot-swappable PSUs with support for 1+1 redundancy and the following configuration options:
• 3000 W AC Titanium PSUs 2500 W (อินพุต: 200 V to 220 V AC) 2900 W (อินพุต: 220 V to 230 V AC) 3000 W (อินพุต: 230 V to 240 V AC) • 2000 W AC Platinum PSUs 1800 W (อินพุต: 200 V to 220 V AC, หรือ 192 V to 200 V DC) 2000 W (อินพุต: 220 V to 240 V AC, หรือ 200 V to 288 V DC) • 900 W AC Platinum/Titanium PSUs (อินพุต: 100 V to 240 V AC, หรือ 192 V to 288 V DC) • 1500 W HVDC PSUs (อินพุต: 260 V to 400 V AC) • 1500 W 380V HVDC PSUs (อินพุต: 260 V to 400 V DC) |
| Management | • BMC integrates one dedicated management GE network port to provide comprehensive management features such as fault diagnosis, automated O&M, and hardware security hardening.
• BMC supports standard interfaces such as Redfish, SNMP, and IPMI 2.0; provides a remote management interface based on HTML5/VNC KVM; supports CD-free deployment and the Agentless feature for smart and simplified management. • (Optional) Configured with the FusionDirector management software to provide advanced management features such as stateless computing, batch OS deployment, and automated firmware upgrade, enabling automatic entire-lifecycle management |
| Operating Systems | ไมโครซอฟท์ วินโดวส์ เซิร์ฟเวอร์, Red Hat Enterprise Linux, เซิร์ฟเวอร์ SUSE Linux Enterprise, เอ็นเซ็ท, Citrix XenServer, and VMware ESXi |
| Security Features | Power-on password, administrator password, TCM/TPM 2.0, security front panel, and out-of-box intrusion alarm, ect. |
| Operating Temperature | 5°C to 45°C (41°F to 113°F), compliant with ASHRAE Classes A3 and A4 |
| Certifications | CE, UL, FCC, CCC, and RoHS, etc |
| Installation Kit | Adjustable guide rails, holding rails, and cable management arms (CMAs) |
| Dimensions (H x W x D) | Chassis: 86.1 มม. x 447 มม. x 790 มิลลิเมตร (3.39 ใน. x 17.60 ใน. x 31.10 in.) |
