ผู้ค้าปลีกเซิร์ฟเวอร์
|

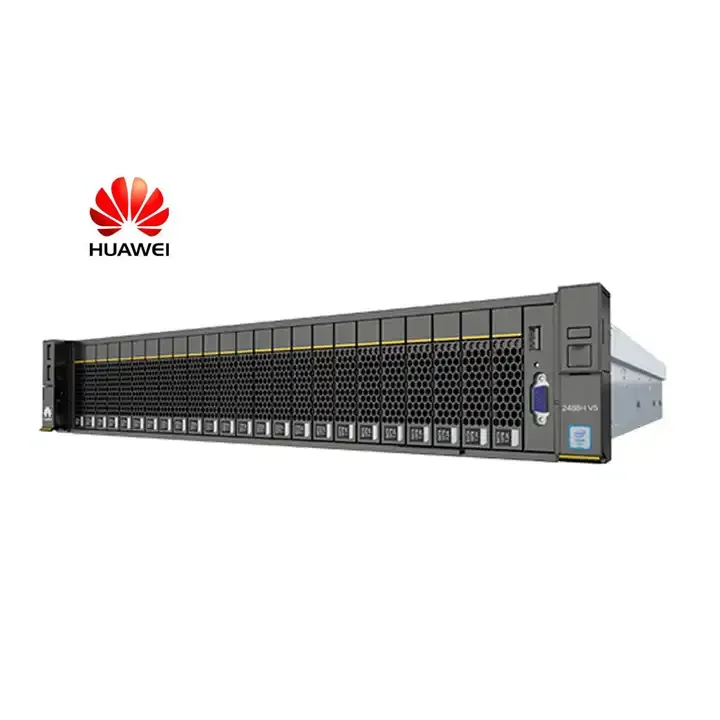

Model
|
2488H V5
|
|
ฟอร์มแฟคเตอร์
|
1เซิร์ฟเวอร์แร็ค U
|
|
Number of processors
|
1 หรือ 2
|
|
Processors
|
Intel Xeon E5-2600 v3 series processors
|
|
ความจำ
|
16 slots for DDR4 RDIMMs or LRDIMMs
|
|
Local storage
|
Supports two types of hard disk configurations:
|
|
• Eight 2.5-inch SSDs or SAS or SATA HDDs
|
|
|
• Four 3.5-inch SAS or SATA HDDs
|
|
|
Supports Flash storage:
|
|
|
• Two Mini SSDs (SATA DOM)
|
|
|
• Two card
|
|
|
RAID Support
|
Supports RAID 0, 1, 10, 5, 50, 6, และ 60
|
|
Uses a supercapacitor to protect RAID cache data from power failures
|
|
|
Supports RAID state migration, RAID configuration memory, self-diagnosis, and remote setting
|
|
|
Network Ports
|
Provides two or four ports or two 10GE ports
|
|
PCIe Expansion
|
Provides up to three PCIe slots
|
|
Fan Modules
|
5 hot-swappable fan modules in N+1 redundancy.
|
|
Each fan module has two counter-rotating fans.
|
|
|
Power Supply Units
|
Can be configured with two hot-swappable PSUs in redundancy and supports N+1 redundancy.
|
|
The server supports the following PSUs:
|
|
|
• 460 หรือ 750 AC or PSU
|
|
|
• 800 –48 V PSU
|
|
|
• 1200 high-voltage PSU
|
|
|
Management
|
The on-board iBMC module supports Intelligent Platform Management Interface (IPMI), SOL, KVM over IP, and virtual media and
provides a 1 Gbit/s RJ45 management network port supporting Network Controller Sideband Interface (NC-SI). |
|
Supported OSs
|
เอ็นเซ็ท
|
|
Citrix XenServer
|
|
|
Server
|
|
|
Red Hat Enterprise Linux
|
|
|
เซิร์ฟเวอร์ SUSE Linux Enterprise
|
|
|
VMware ESXi
|
|
|
ไฟ
|
110 V to 220 V AC
|
|
240 V to 380 V
|
|
|
–48 V
|
|
|
Operating temperature
|
5°C to 45°C (41°F to 113°F)
|
|
NOTE: The RH1288 V3 servers operating at 45°C do not support SSDs, and the fault of one fan may affect CPU performance.
|
|
|
Certification
|
CE, UL, FCC, CCC, and RoHS
|
|
Installation suite
|
Guide rails
|
|
Adjustable holding rails
|
