Product Description

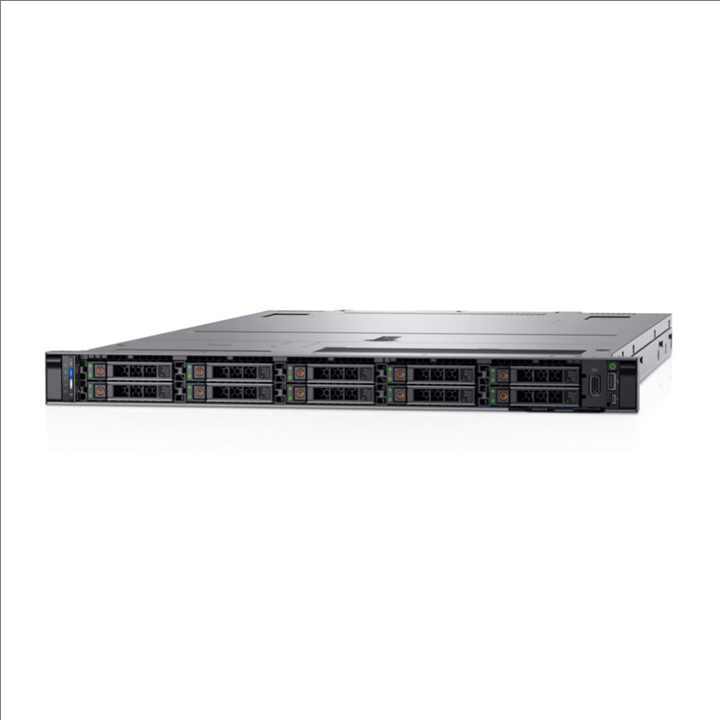

PowerEdge R660 Rack Server
Built for versatility and optimal performance Take innovation to the next level with faster time to value and peak compute performance using optimum configurations. Built with a 1U, two-socket design.
|
Features
|
Technical Specification
|
|||
|
Processors
|
Up to two 4th Generation Intel Xeon Scalable or Intel Xeon Max processors, with up to 56 cores and optional Intel® QuickAssist
Technology. Up to two 5th Generation Intel Xeon Scalable processors with up to 64 cores. |
|||
|
ความจำ
|
32 DDR5 DIMM slots, supports RDIMM 8 วัณโรคสูงสุด, speeds up to 4800 MT/s Speeds up to 4800 MT/s on the 4th Generation Intel Xeon
Scalable or Intel Xeon Max processors Speeds up to 5600 MT/s on the 5th Generation Intel Xeon Scalable processors Supports registered ECC DDR5 DIMMs only |
|||
|
Storage Controllers
|
Internal Controllers (RAID): PERC H965i, PERC H755, PERC H755N, PERC H355, HBA355i
External Controller: PERC H965e Internal Boot: Boot Optimized Storage Subsystem (BOSS-N1): HWRAID 2 x M.2 NVMe SSD drives, or USB External HBAs (non-RAID): HBA355e Software RAID: S160 |
|||
|
ช่องขับ
|
Front bays:
สูงสุด 10 x 2.5-inch, เอสเอส/ซาต้า/NVMe (ฮาร์ดดี/เอสดีเอสดี) สูง สุด 153.6 วัณโรค สูงสุด 8 x 2.5-inch, เอสเอส/ซาต้า/NVMe, (ฮาร์ดดี/เอสดีเอสดี) สูง สุด 122.88 วัณโรค สูงสุด 14 x EDSFF E3.S Gen5 NVMe (เอสดีเอสบี) สูง สุด 179.2 วัณโรค สูงสุด 16 x EDSFF E3.S Gen5 NVMe (เอสดีเอสบี) สูง สุด 204.8 วัณโรค Rear bays: สูงสุด 2 x 2.5-inch, SAS/SATA/NVMe max 30.72 วัณโรค สูงสุด 2 x EDSFF E3.S Gen5 NVMe (เอสดีเอสบี) สูง สุด 25.6 วัณโรค |
|||
|
พาวเวอร์ซัพพลาย
|
1400W Titanium 277 VAC or 336 HVDC, hot swap with full redundant 1800W Titanium 200-240 HLAC or 240 HVDC, hot swap with full
redundant 1400W Platinum 100-240 VAC or 240 HVDC, hot swap with full redundant 1100W Titanium 100-240 VAC or 240 HVDC, hot swap with full redundant 1100W -(48-60) วีซี, hot swap with full redundancy 800W -(48-60) วีซี, hot swap with full redundancy 800W Platinum 100-240 VAC or 240 HVDC, hot swap with full redundant 700 W Titanium 200-240 HLAC or 240 HVDC, hot swap with full redundant |
|||
|
Cooling options
|
Air cooling
Optional Direct Liquid Cooling (DLC) Note: DLC is a rack solution and requires rack manifolds and a cooling distribution unit (CDU) to operate |
|||
|
Fans
|
Standard (STD) fans/High performance Gold (VHP) fans
สูงสุด 4 sets (dual fan module) hot plug fans |
|||
|
Dimension
|
Height: 42.8 มิลลิเมตร (1.68 นิ้ว)
Width: 482 มิลลิเมตร (18.97 นิ้ว) Depth: – 822.88 มิลลิเมตร (32.39 นิ้ว) with bezel 809.04 มิลลิเมตร (31.85 นิ้ว) without bezel |
|||
|
ฟอร์มแฟคเตอร์
|
1เซิร์ฟเวอร์แร็ค U
|
|||
|
Embedded Management
|
ไอดีอาร์ค 9
iDRAC Direct iDRAC RESTful API with Redfish iDRAC Service Module Quick Sync 2 wireless module |
|||
|
Bezel
|
Optional LCD bezel or security bezel
|
|||
|
OpenManage Software
|
OpenManage Enterprise
OpenManage Power Manager plugin OpenManage Service plugin OpenManage Update Manager plugin CloudIQ for PowerEdge plug in OpenManage Enterprise Integration for VMware vCenter OpenManage Integration for Microsoft System Center OpenManage Integration with Windows Admin Center |
|||
|
Mobility
|
OpenManage Mobile
|
|||
|
Integrations and Connections
|
OBMC Truesight
Microsoft System Center OpenManage Integration with ServiceNow Red Hat Ansible Modules Terraform Providers VMware vCenter and vRealize Operations Manager |
|||
|
Security
|
Cryptographically signed firmware
Data at Rest Encryption (SEDs with local or external key mgmt) Secure Boot • Secure Erase Secured Component Verification (Hardware integrity check) Silicon Root of Trust System Lockdown (requires iDRAC9 Enterprise or Datacenter) TPM 2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ |
|||
|
Embedded NIC
|
2 x 1 GbE LOM card (optional)
|
|||
|
Network Options
|
1 x OCP card 3.0 (optional)
Note: The system allows either LOM card or an OCP card or both to be installed in the system. 1 x Managemnet Interface Card (MIC) to support D ell Data Processing Unit (DPU card) (optional) Note: The system allows either LOM card or MIC card to be installed in the system. |
|||
|
ตัวเลือก GPU
|
สูงสุด 3 x 75 W SW
|
|||
|
พอร์ต
|
Front Ports
1 x iDRAC Direct (Micro-AB USB) port 1 x USB 2.0 1 x VGA Rear Ports 1 x Dedicated iDRAC Ethernet port 1 x USB 2.0 1 x USB 3.0 1 x Serial (optional) 1 x VGA (optional for Direct Liquid Cooling configuration) Internal Ports 1 x USB 3.0 (optional) |
|||
|
ซีอีซี
|
Up to three PCIe slots :
Slot 1 : 1 x16 Gen5 Full height, 3/4 length, Half length or 1 x8/ 1 x16 Gen 5 หรือ 1 x16 Gen 4 Low profile, Half length Slot 2 : 1 x16 Gen5 Full height, 3/4 length, Half length or 1 x16 Gen 5 หรือ 1 x16 Gen 4 Low profile, Half length Slot 3 : 1 x8/ 1 x16 Gen 5 หรือ 1 x16 Gen 4 Low profile, Half length |
|||
|
Operating System and Hypervisors
|
Canonical Ubuntu Server LTS
Microsoft Windows Server with Hyper-V Red Hat Enterprise Linux เซิร์ฟเวอร์ SUSE Linux Enterprise VMware ESXi |
|||
