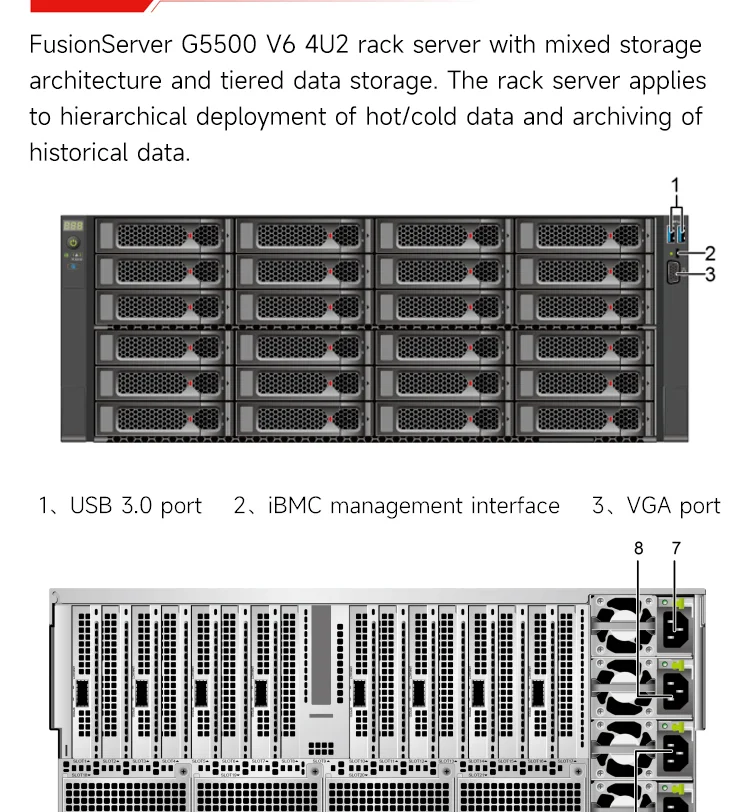

Server Model

FusionServer 5500 V6

Form Factor

4U GPU server

Processors

2 x 3rd Generation Intel® Xeon® Scalable processors (Ice Lake), up to 270 W TDP per processor

Local Storage

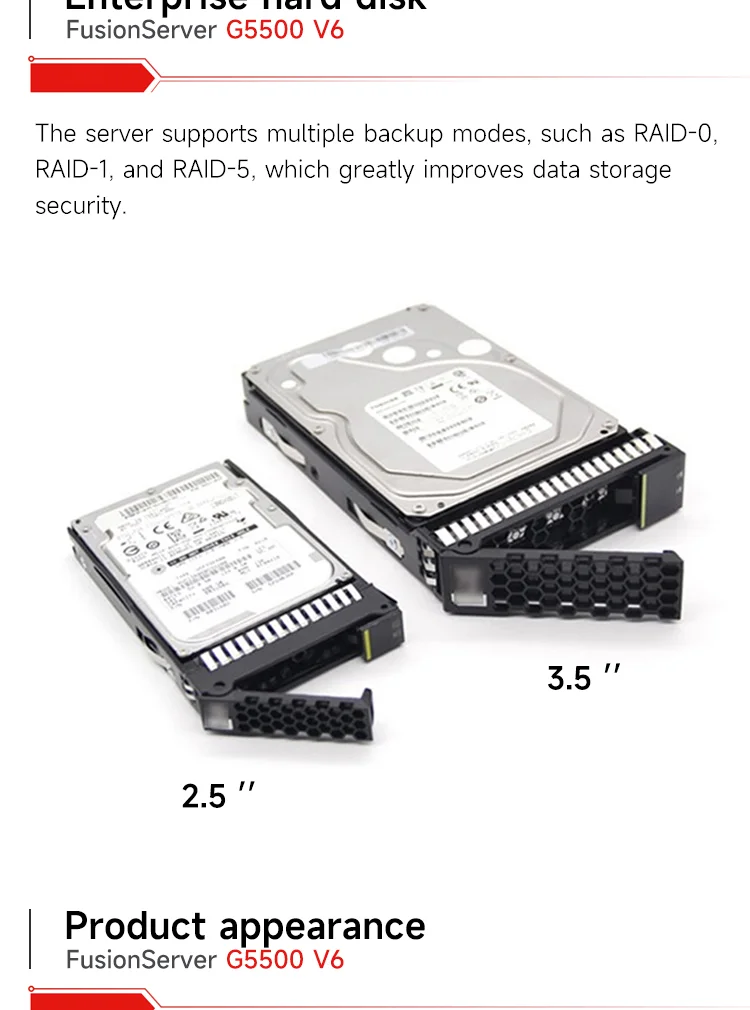

Supports hot-swappable drives in the following configurations:
• Up to 24 x 3.5-inch SAS/SATA drives;
• Up to 8 x NVMe SSDs;
• 2 x M.2 SSDs

RAID support

RAID 0, 1, 10, 5, 50, 6, or 60; Supercapacitors for cache data protection from power failures; RAID level migration, drive
roaming, self-diagnosis, and remote web-based configuration

PCIe Expansion

Up to 16 x PCIe expansion slots, including 12 x PCIe 4.0 x16 standard slots, 3 x OCP slots, and 1 x built-in RAID card slot

Network

Multiple network expansion capabilities; 3 x OCP 3.0 NICs, which can be configured as required and supports orderly hot swap

Fan Modules

6 x hot-swappable counter-rotating fans in N+1 redundancy

Power Supply Units

4 x hot-swappable PSUs in N+N/N+M redundancy
• 3000 W AC Titanium PSUs
2500 W (input: 200 V to 220 V AC)
2900 W (input: 220 V to 230 V AC)
3000 W (input: 230 V to 240 V AC)
• 2000 W AC Platinum PSUs
1800 W (input: 200 V to 220 V AC, or 192 V to 200 V DC)
2000 W (input: 220 V to 240 V AC, or 200 V to 288 V DC)
• 1500 W 380 V HVDC PSUs (input: 260 V to 400 V DC)
• 1200 W –48 V to –60 V DC PSUs (input: –38.4 V to –72 V DC)

Management

The iBMC chip integrates one dedicated management GE network port, providing comprehensive management features such as fault
diagnosis, automatic O&M, and hardware security hardening.
• The iBMC supports standard interfaces such as Redfish, SNMP, and IPMI 2.0, provides a remote management user interface based on
HTML5/VNC KVM; supports out-of-band management functions such as monitoring, diagnosis, configuration, Agentless, and remote
control for simplified management.
• It is optional to configure the FusionDirector management software that provides advanced management features such as five
intelligent technologies, enabling intelligent, automatic, visualized, and refined management throughout the lifecycle.

OS

FusionOS, Microsoft Windows Server, SUSE Linux Enterprise Server, VMware ESXi, Red Hat Enterprise Linux, CentOS, Oracle, Ubuntu,
Debian, and openEuler

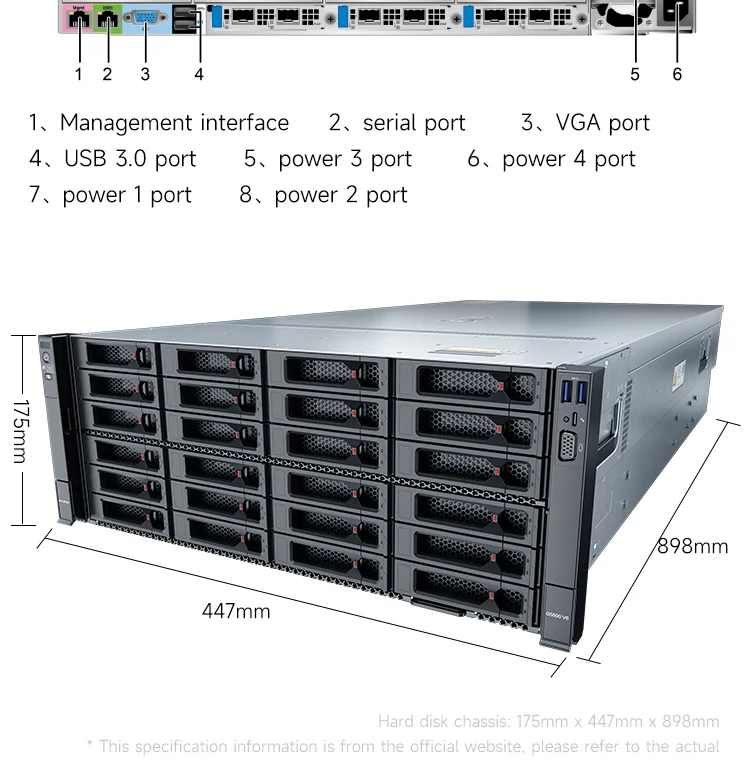

Dimensions (H x W x D)

175 mm x 447 mm x 898 mm (6.89 in. x 17.60 in. x 35.35 in)
